This weld head is a specialized welding head designed and developed for all position automatic welding of various tube plate joints
Welding pipe diameter: 8mm-32mm
Welding form: Butt joint
Welding wall thickness: ≤ 2.5mm
Adopting pneumatic core expansion method, the welding gun can be
fixed at the center of the pipe fitting, firmly clamped, and simplifying
the difficulty of welding operations
Suitable for welding pipe extension, pipe leveling, self melting, and wire filling
The overall structural design is compact, with internal transmission for water and electricity, and no conduit winding at 360 °
Built in wire feeder, capable of installing 1KG welding wire tray
Cooling water circulation, high equipment temporary load rate; Tight assembly process ensures stable operation of equipment
Optimized ergonomic design, easy to use, safe and reliable

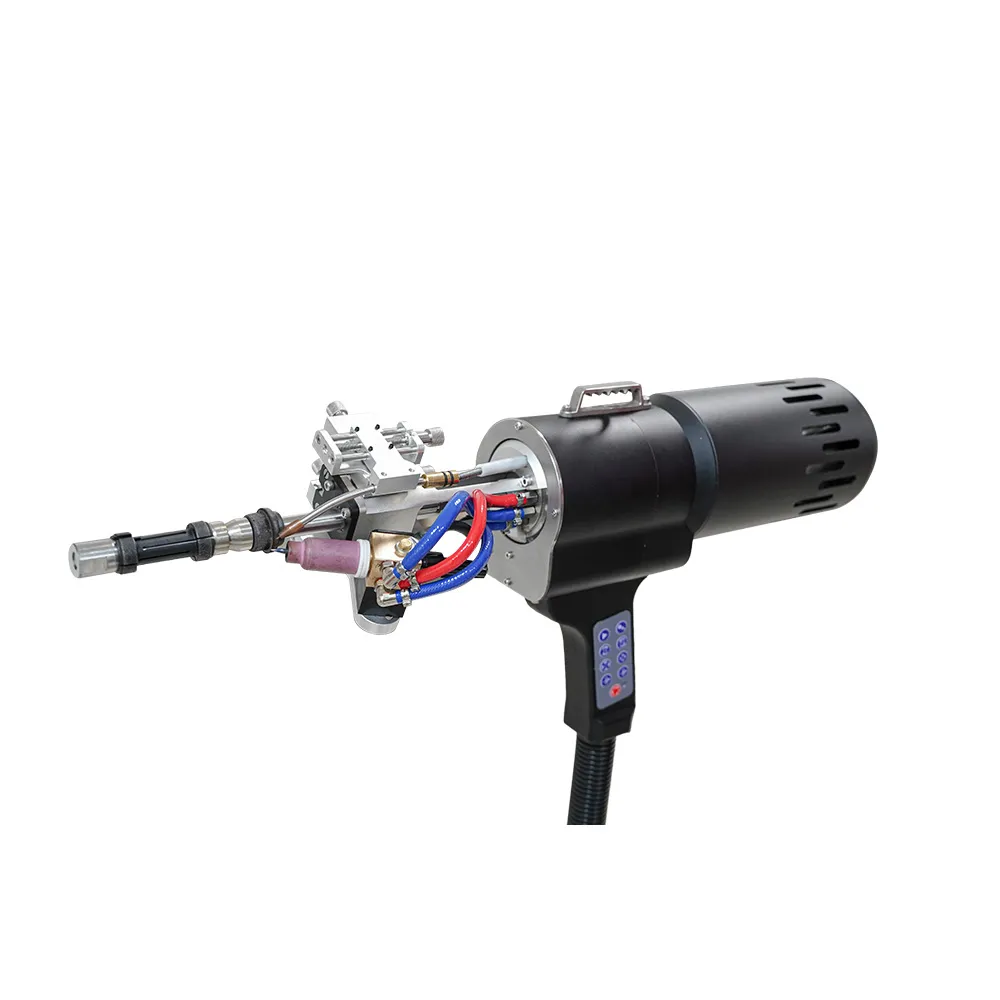

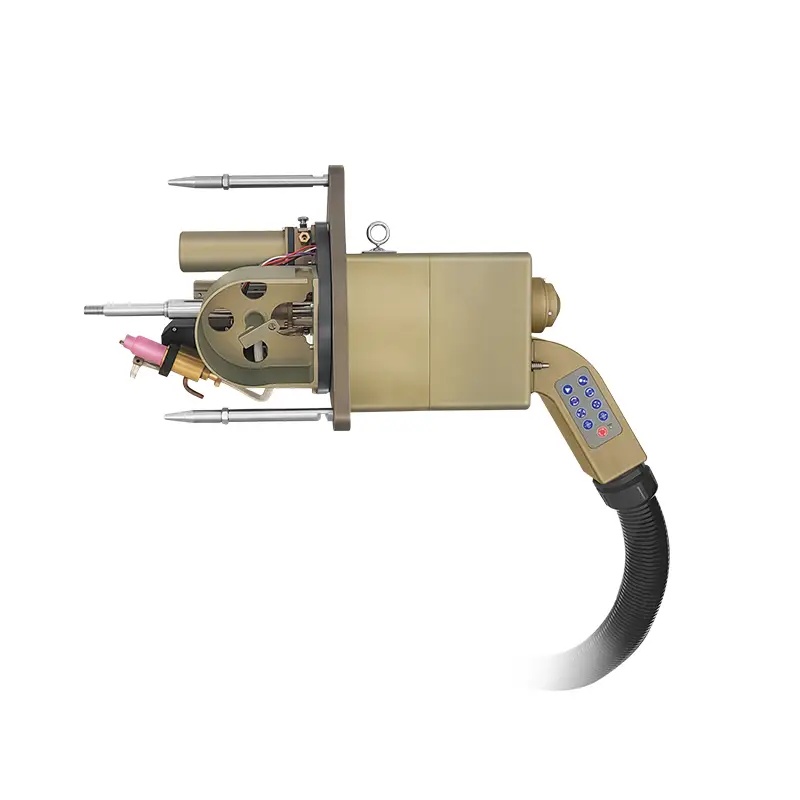

The KEPUNI TB-35 is a precision-engineered welding head optimized for
all-position automatic orbital welding of tube-to-tube sheet joints,
offering enhanced accuracy and operational efficiency in industrial
applications.

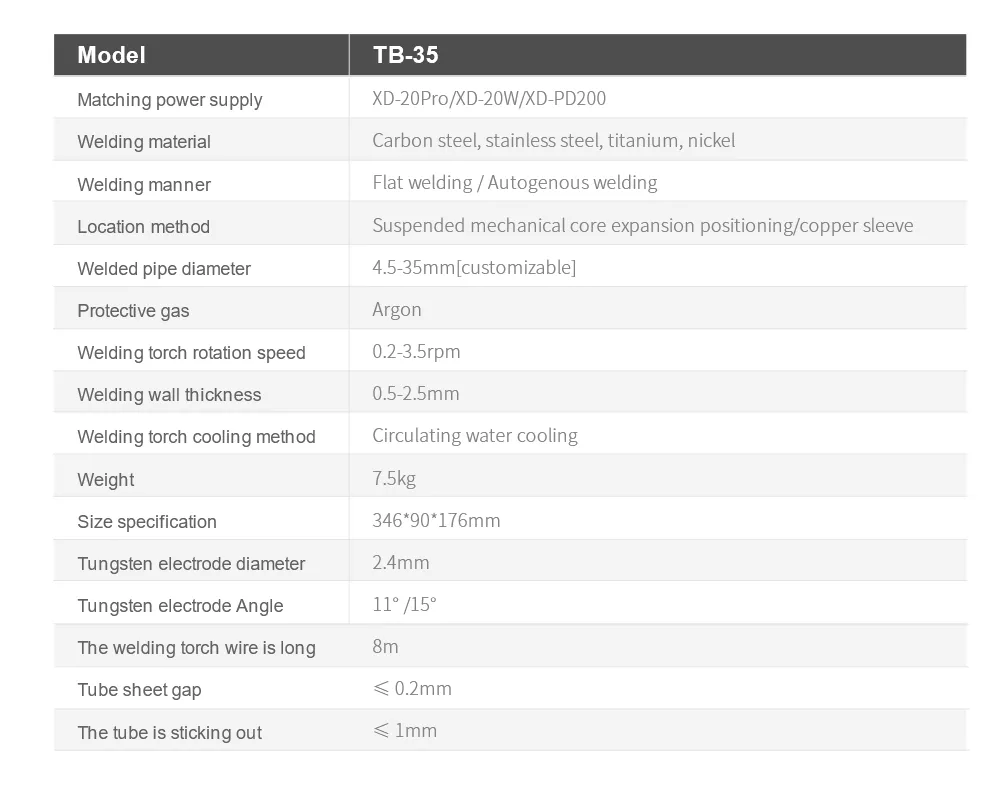

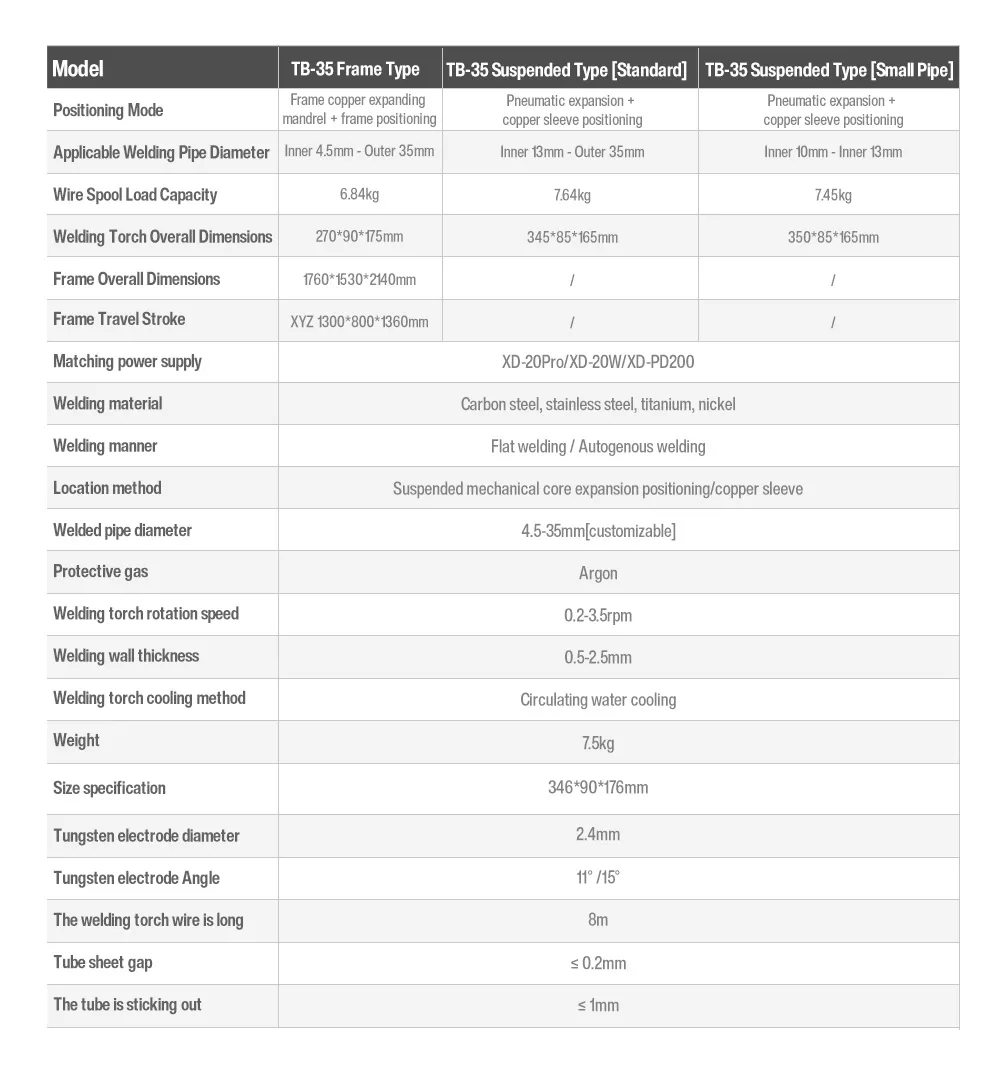

Key Specifications: Pipe Diameter Range: 8 mm – 32 mm
Joint Type: Butt welding configuration
Wall Thickness: ≤ 2.5 mm

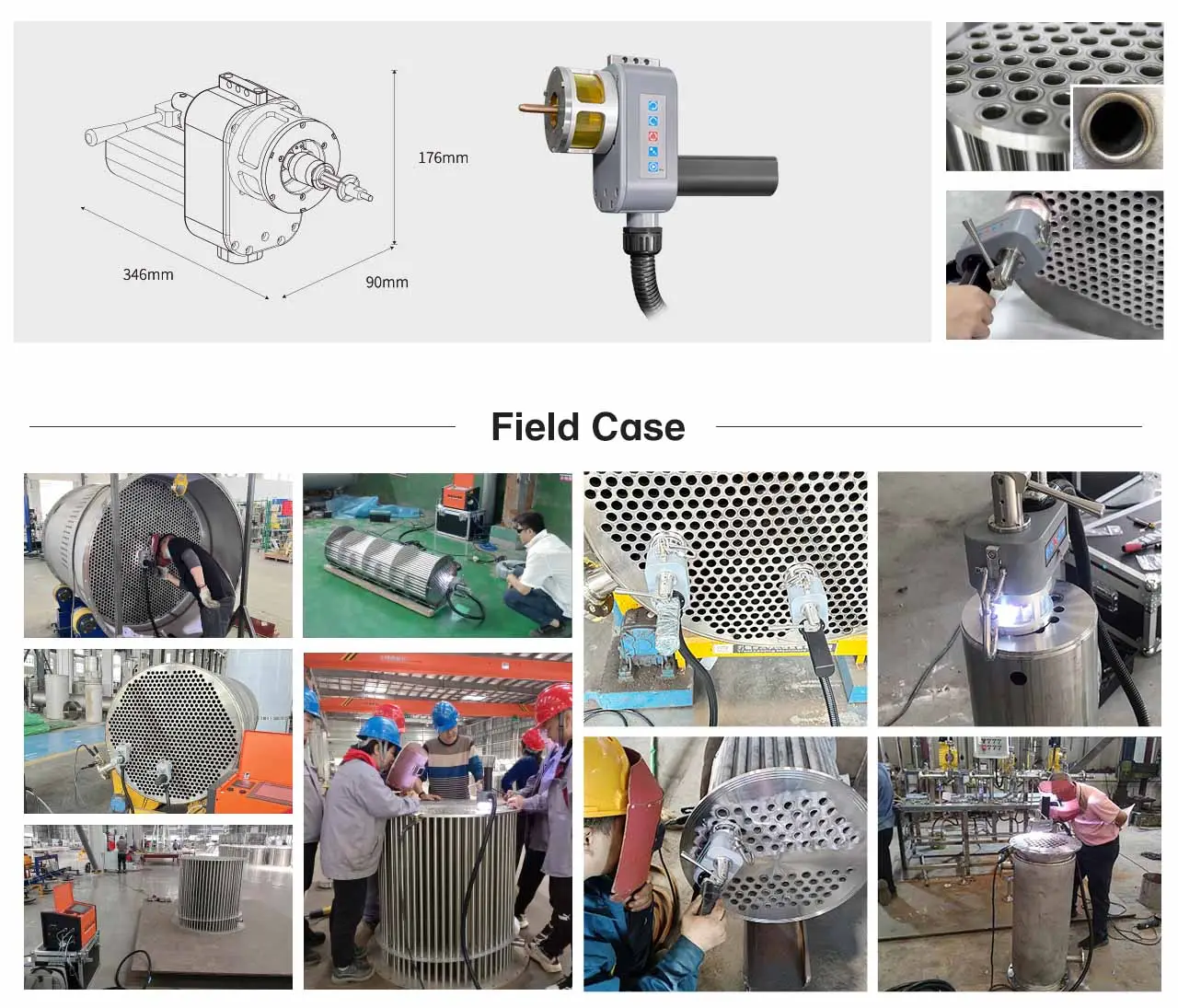

Advanced Features: Pneumatic Core Expansion Alignment Multi-Process Welding Capability Compact & Conduit-Free Design Rigorous Assembly & Safety Applications: Power Generation: Welds boiler tubes, heat exchangers, and steam condensers.
Petrochemical: Repairs process piping and reactor vessels.
HVAC: Fabricates chiller coils and condenser tube joints.
By integrating automation, precision controls, and operator-centric
design, while meeting ASME Section IX and ISO 15614-1 standards.
A pneumatic mechanism
automatically centers and clamps the welding torch within the tube
fitting, ensuring precise positioning and reducing setup time by 50%.
Water-cooled torch with
closed-loop circulation maintains a 100% duty cycle at 200A, preventing
overheating during prolonged welds.
Features internal water/electricity routing with 360° freedom of movement, minimizing cable entanglement and maintenance.
Tight-tolerance
manufacturing ensures equipment stability, while an ergonomic hand
control box with emergency stop functionality enhances operator safety.
