This series of orbital welding guns is suitable for industries such as heat exchangers, refrigeration, dense piping, and boiler. The design includes agearbox with water cooling system and cylinder clamping function. The welding gun can be customized according to the customer's pipe spacing, and the customization cycle is about 2 weeks before delivery for use. The parameters and performance of this series of welding guns are as follow:
Welding wall thickness: 0.5mm~1.5mm
Welding materials: Stainless steel, iron
Power supply: XD-20W/20Pro
Z-series gears are standard across the entire series, with a lifespan that is twice as long as similar products
Tailored for industries including heat exchangers, refrigeration,
high-density piping, and boiler fabrication, the KEPUNI enclosed orbital
welding torch series combines precision engineering with customizable
solutions. Key features include an integrated gearbox with water cooling
and pneumatic cylinder clamping, ensuring stable performance in
demanding environments.

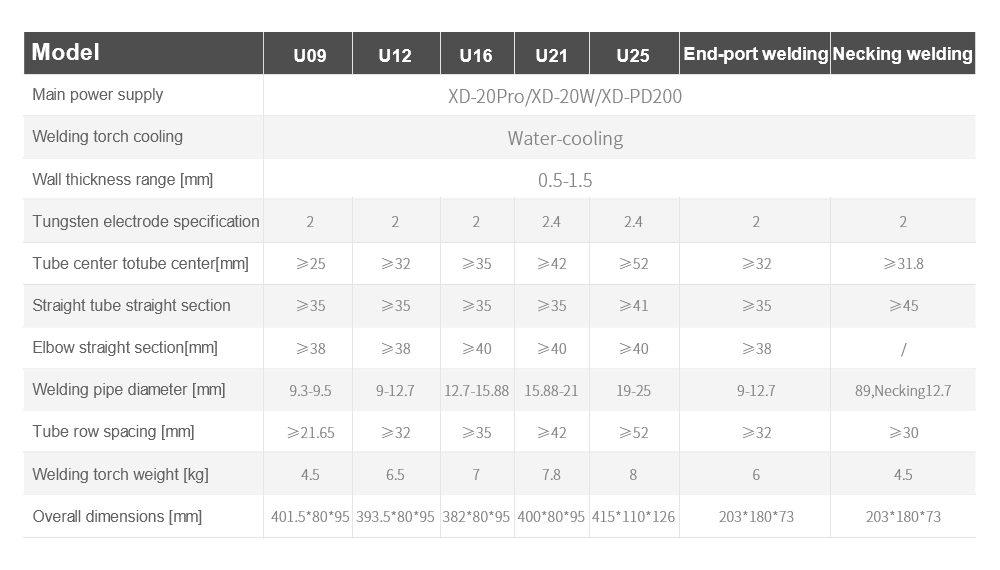

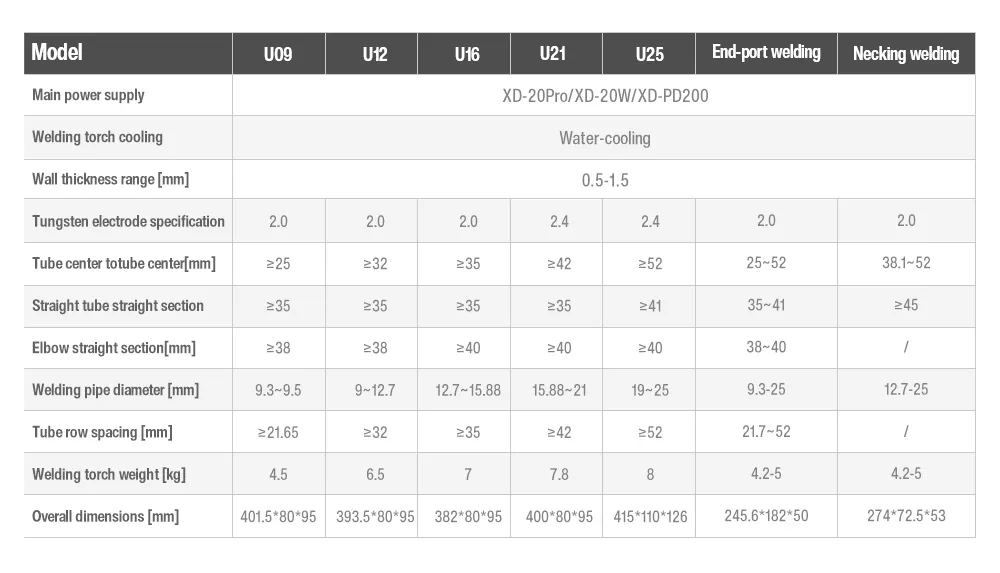

Key Specifications: Customizable Pipe Spacing: Welding Ranges:

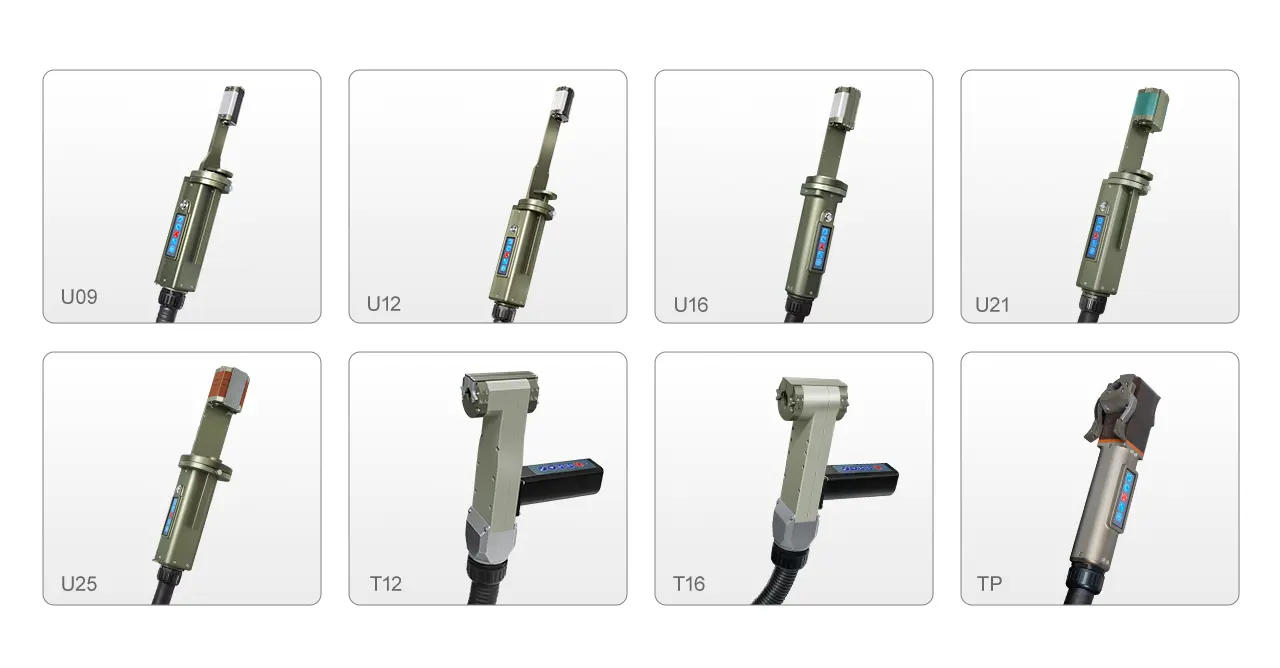

U-shaped Track Torch: 9.3 mm – 25 mm pipe diameters
T-type Pullout Torch: 9.3 mm – 25 mm pipe diameters
Wall Thickness: 0.5 mm – 1.5 mm
Material Compatibility: Stainless steel, carbon steel
Power Supply: Compatible with XD-20W/20Pro units

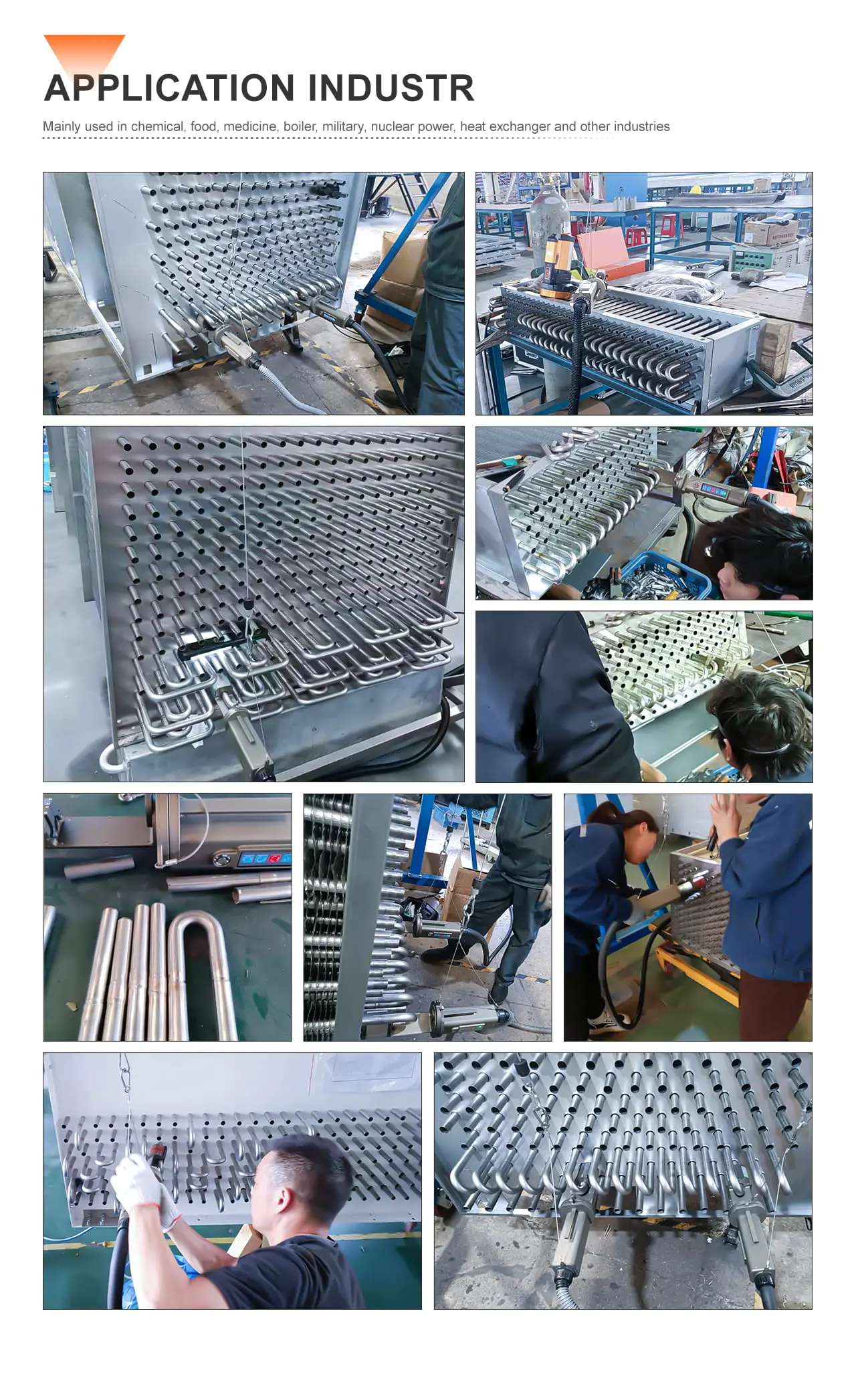

Advanced Features: Durable Z-Series Gearbox Closed-Loop Cooling System Pneumatic Clamping Mechanism Applications: Heat Exchangers: Welds tube bundles and headers.
Refrigeration: Joins copper and stainless steel piping in HVAC systems.
Boiler Manufacturing: Repairs boiler tubes and pressure vessels.
By combining customization, durability, and precision, enhances weld quality consistency
Torch configurations can be adapted to customer-specific pipe layouts, with a 2-week lead time for custom orders.
Standard across the series, the
Z-series gearbox offers a 2x longer lifespan than comparable products,
reducing maintenance costs.
Integrated water cooling maintains optimal torch temperature, enabling continuous operation at high duty cycles.
Ensures secure alignment and minimizes vibration during welding, improving bead quality.
